Seating & Positioning / JAY / Wheelchair Cushions / JAY® Fluid with Cryo Technology

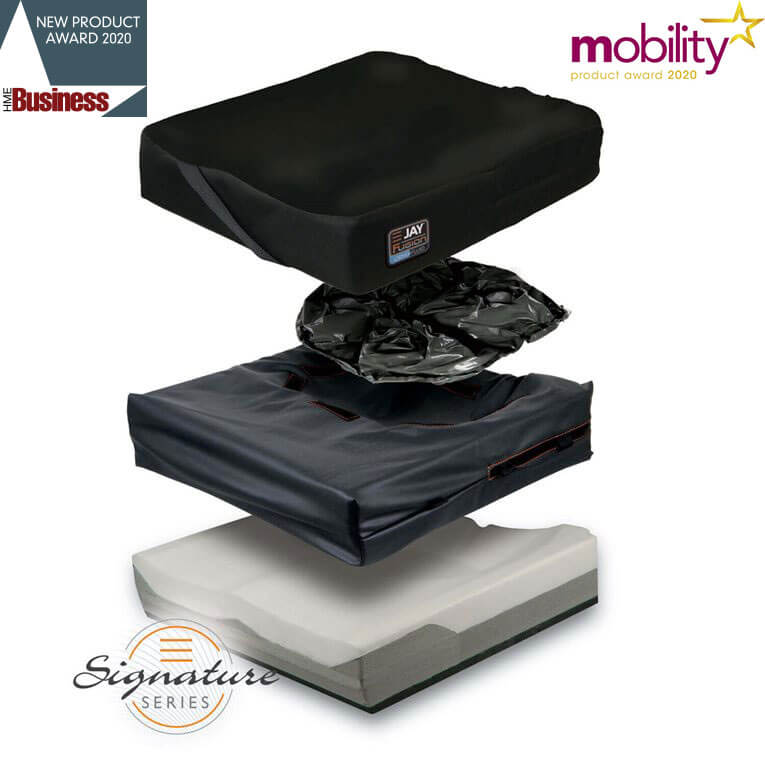

Fusion^® Cushion with Cryo Technology

Introducing CryoFluid, the new revolutionary fluid option available for the JAY Fusion cushion that excels at reducing the risk of pressure injuries. Patent-pending CryoFluid is now being offered alongside industry-favorite JAY Flow^® Fluid to provide more options for skin protection. The Fusion wheelchair cushion conforms to each individual's shape, adjusts to sitting positions, and ensures proper fluid placement beneath bony prominences to help protect the skin from breakdown.

JAY Fluid with Cryo Technology is a revolutionary wheelchair cushion material that actively cools a patient's seated skin surface for up to 8 hours* while evenly distributing pressure, reducing shear, and lowering the risk of moisture. With traditional cushions on the market today, seated skin surface temperatures can rise to 37°C (98.6°F), leading to an increased risk in skin breakdown. Lowering the skin's temperature as little as 1°C (1.8°F) can reduce the risk of skin breakdown significantly. Cryo Technology was engineered to mildly cool the skin within a therapeutic temperature range of 28°C - 35°C (82.4°F - 95°F), effectively lowering the risk of skin breakdown. The cooler skin surface temperature has the added benefit of reducing the likelihood of moisture associated with localized perspiration.

Find Your Local Dealer

Configure

Options and Prices

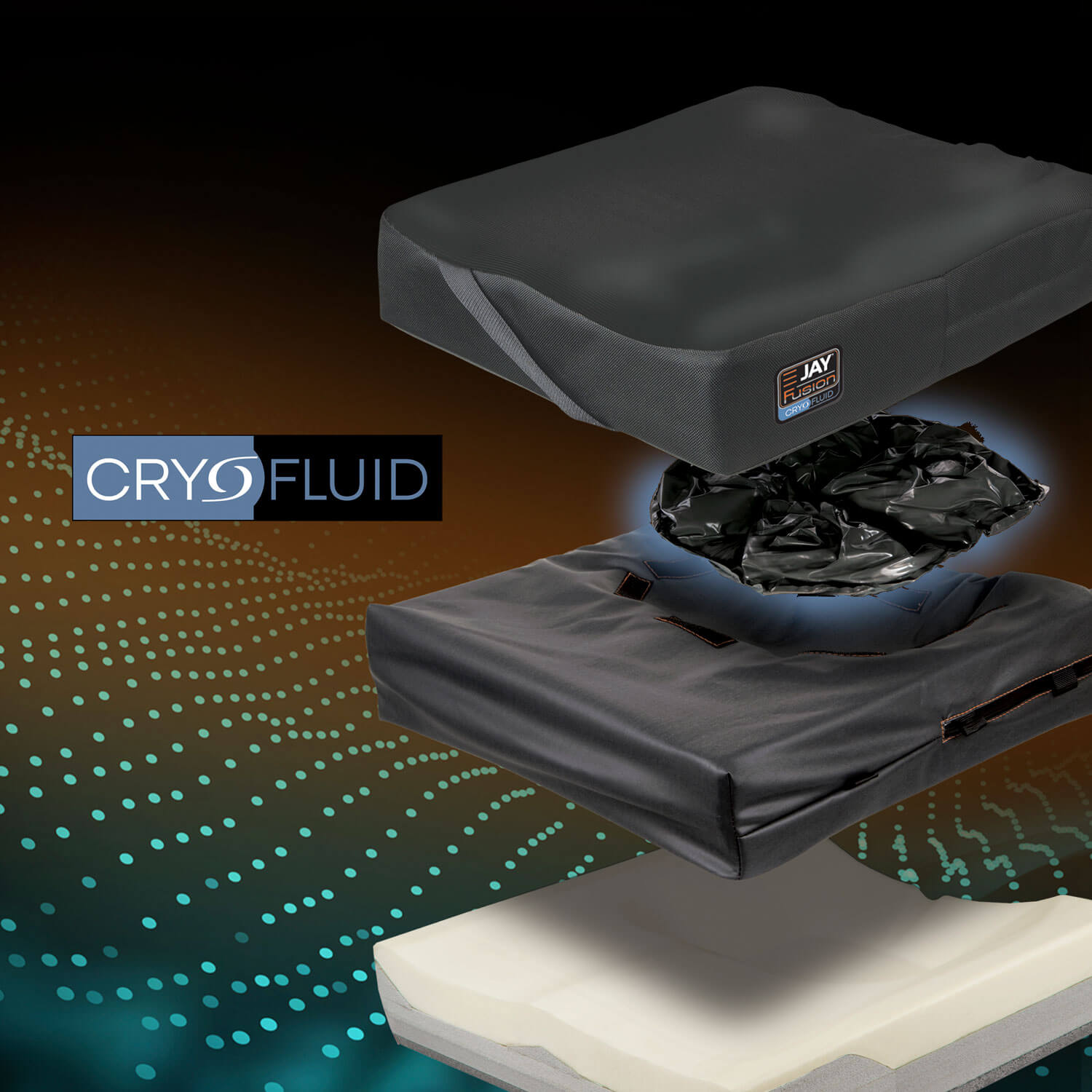

Providing one of the highest degrees of skin protection on the market

Each year, up to 120,000 spinal cord injury (SCI) patients who use a wheelchair in the United States are diagnosed with a pressure injury*. In fact, pressure injuries are so prevalent in the complex rehab technology space that approximately 95% of SCI patients will develop a pressure injury over their lifetime*. JAY Clinical Seating's top priority is to mitigate risk factors attributable to seating that leads to these debilitating and costly injuries.

JAY Fluid with Cryo Technology addresses all four risks associated with pressure injuries.

Pressure: JAY Fluid with Cryo Technology evenly distributes pressure across the seating surface.
Shear: 4-way stretch Lycra^® cover reduces shear forces between the cushion cover and JAY Fluid with Cryo Technology insert.
Temperature: JAY Fluid with Cryo Technology lowers the seated skin temperature into the therapeutic temperature range for up to eight hours.
Moisture: Cooler skin temperatures reduce the likelihood of perspiration on the seated surface.

* Source: Fogelberg, D., Atkins, M., Blanche, E., Carlson, M., & Clark, F. (2009). Decisions and Dilemmas in Everyday Life: Daily Use of Wheelchairs by Individuals with Spinal Cord Injury and the Impact on Pressure Ulcer Risk. Topics in Spinal Cord Injury Rehabilitation, 15(2), 16–32. doi: 10.1310/sci1502-16

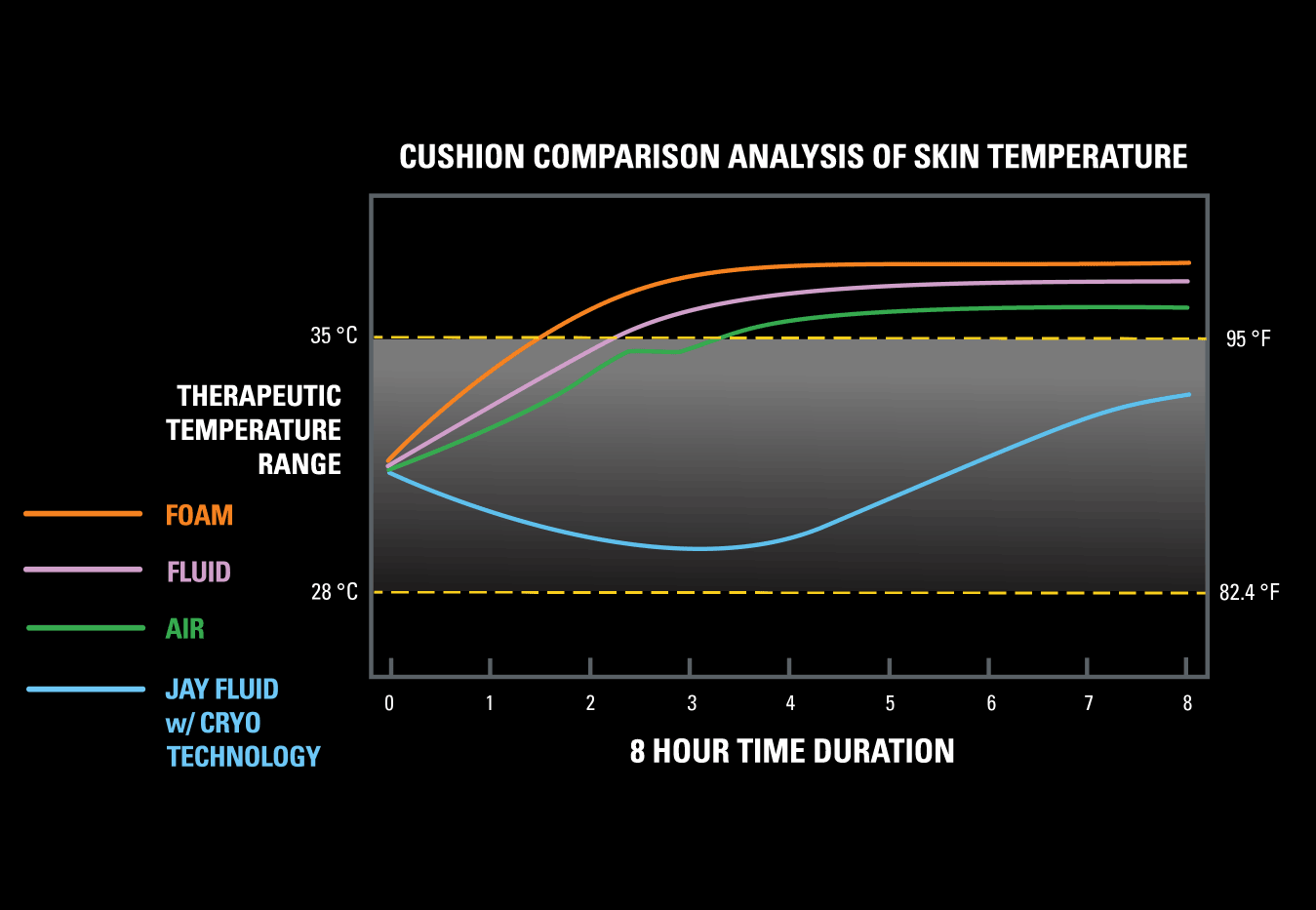

How Cryo Fluid Works

Heat leaves skin surface, cooling the skin

JAY Fluid with Cryo Technology features millions of microbeads filled with paraffin wax which melts at a set temperature. Because skin temperature is warmer than the ambient temperature of the Cryo Fluid, heat from the skin is actively transferred into the fluid. This results in a lowering of the seated skin temperature within therapeutic range.

A long-lasting effect

In addition to millions of microbeads, JAY Fluid with Cryo Technology also utilizes graphite due to its high capacity to effectively disperse heat throughout the fluid. This heat dispersion continues to pull heat from the skin until all microbeads have melted, resulting in a therapeutic cooling effect which can last up to eight hours*. The Cryo Fluid microbeads will naturally re-solidify after the fluid returns to ambient temperature.

* Internal testing data at 77°F. Results may vary.

Specifications

Product Information

Product Type:Foam & Fluid Cushion

Dimensions/Weights

Product Height:

Standard Profile: 4"
Reduced Profile: 3"

Product Width:14" to 22"

Product Depth:14" to 22"

Product Weight:5.3 lbs. (16x18)

User Weight Capacity:

16" to 21" widths: 330 lbs.
22" width: 500 lbs.

Product Options

Base:Pre-contoured closed cell foam base with high-resiliency foam layer with posterior pelvic wall

Insert:JAY CryoFluid

Inner Cover:Dartex^® coated Lycra^® with Aquaguard zipper and anti-wicking thread

Outer Cover:Ionic+^™ silver thread stretch

JAY Your Way Modifications Available:Yes

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
